The DJI Agras T70P agricultural drone has been upgraded to support spraying, spreading, and lifting across various operational scenarios, with a maximum payload capacity of 70 kg. It delivers enhanced efficiency while featuring Safety System 3.0 and advanced algorithms for comprehensive, round-the-clock protection.
The DJI Agras T70P comes equipped with a 70 L tank and dual atomization centrifugal sprinklers, offering high flow rates for faster flight speeds and greater operational efficiency in field applications. Orchard users can choose an optional mist sprinkler set that improves both flow rate and atomization, ensuring thorough penetration even through dense canopies and tall plants.
Increase in Operation Efficiency
High Flow Rate
Effective Spray Width
Maximum Flight Speed
Four Sprinklers
Increase in Leaf Underside Coverage

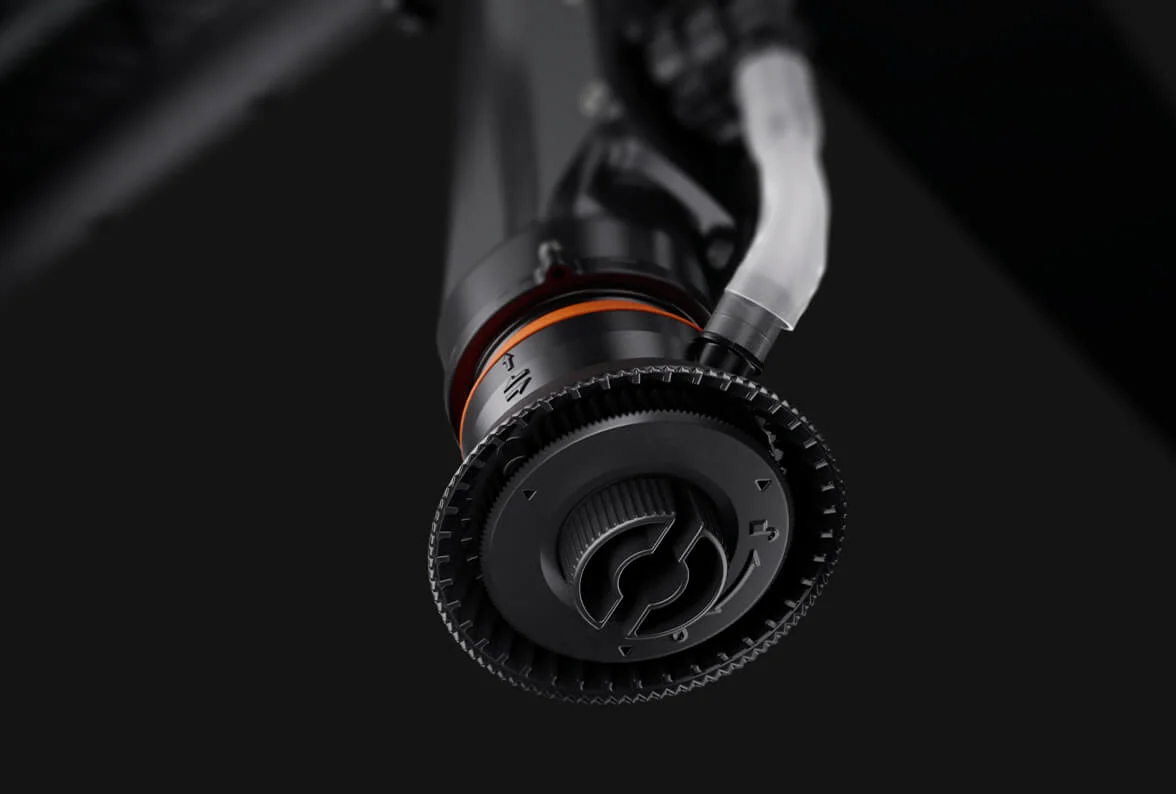

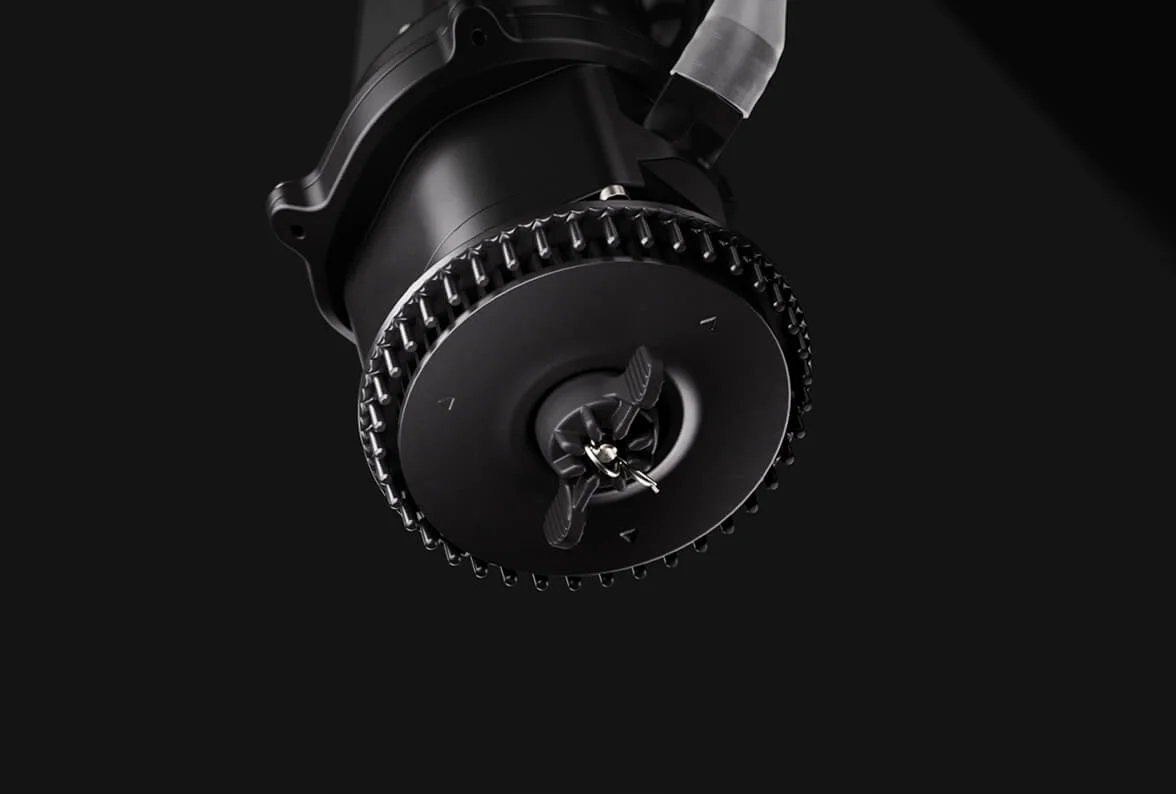

Fine droplets as small as 50 μm penetrate canopies for comprehensive leaf coverage. A new liquid flow path helps dissipate heat generated by dual centrifugal motors, enhancing durability and extending the systems lifespan.
New flow path design, dual sprinklers support a maximum flow rate of 30 L/min, Particle size range of 50-500 μm, suitable for most operational scenarios.

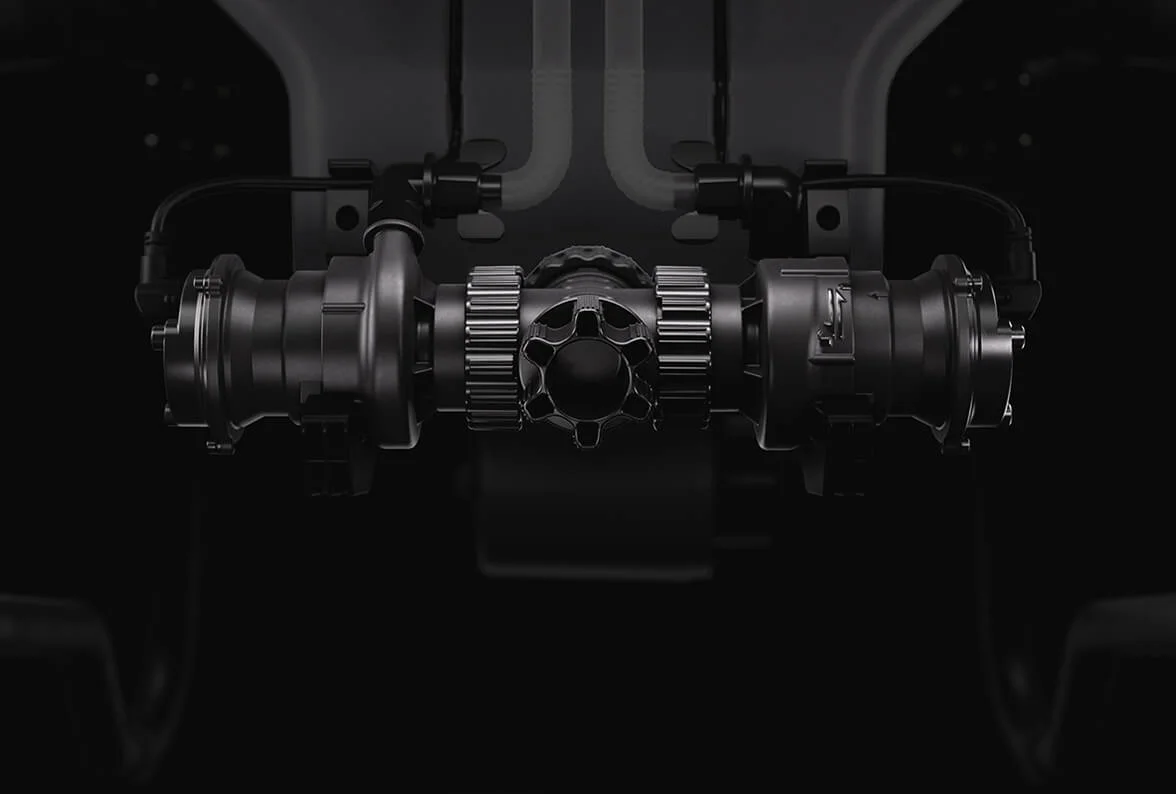

Corrosion-resistant, stable, and reliable, an optimized impeller structure and increased chamber volume meet the high flow demands of orchard scenarios.

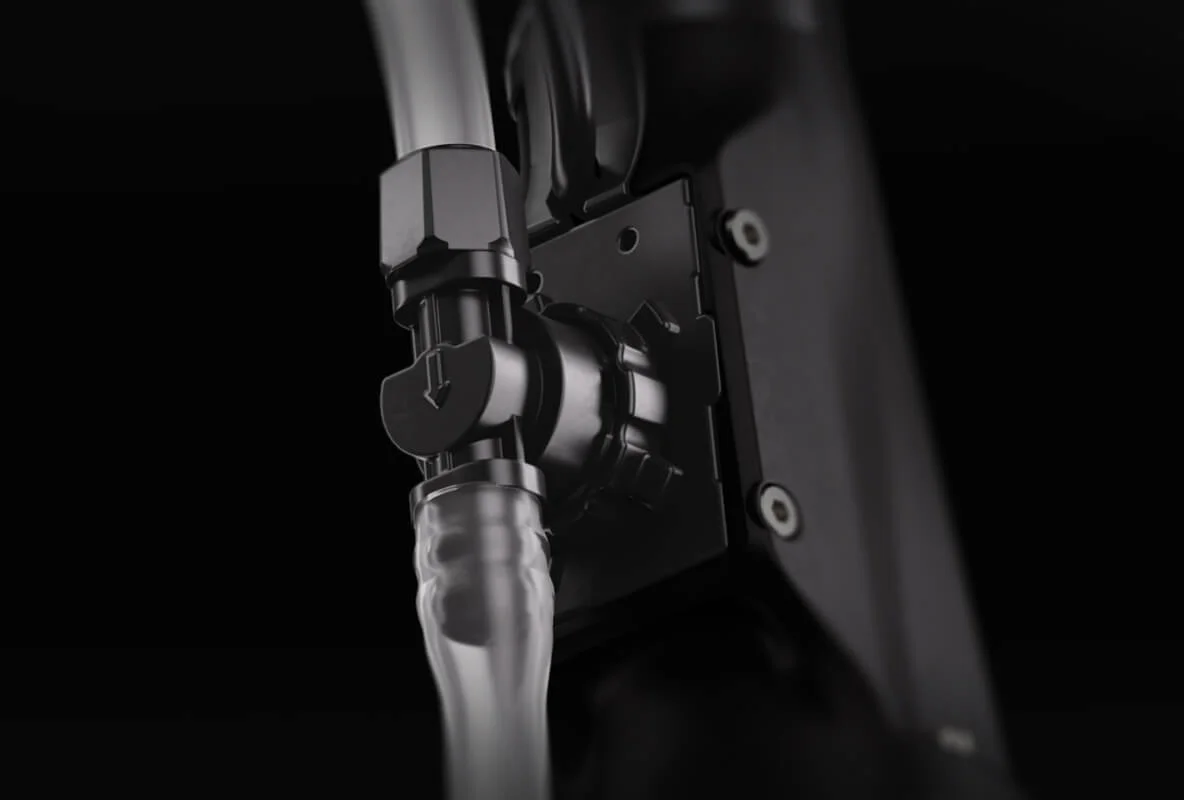

Precision starting and stopping eliminates Leaking

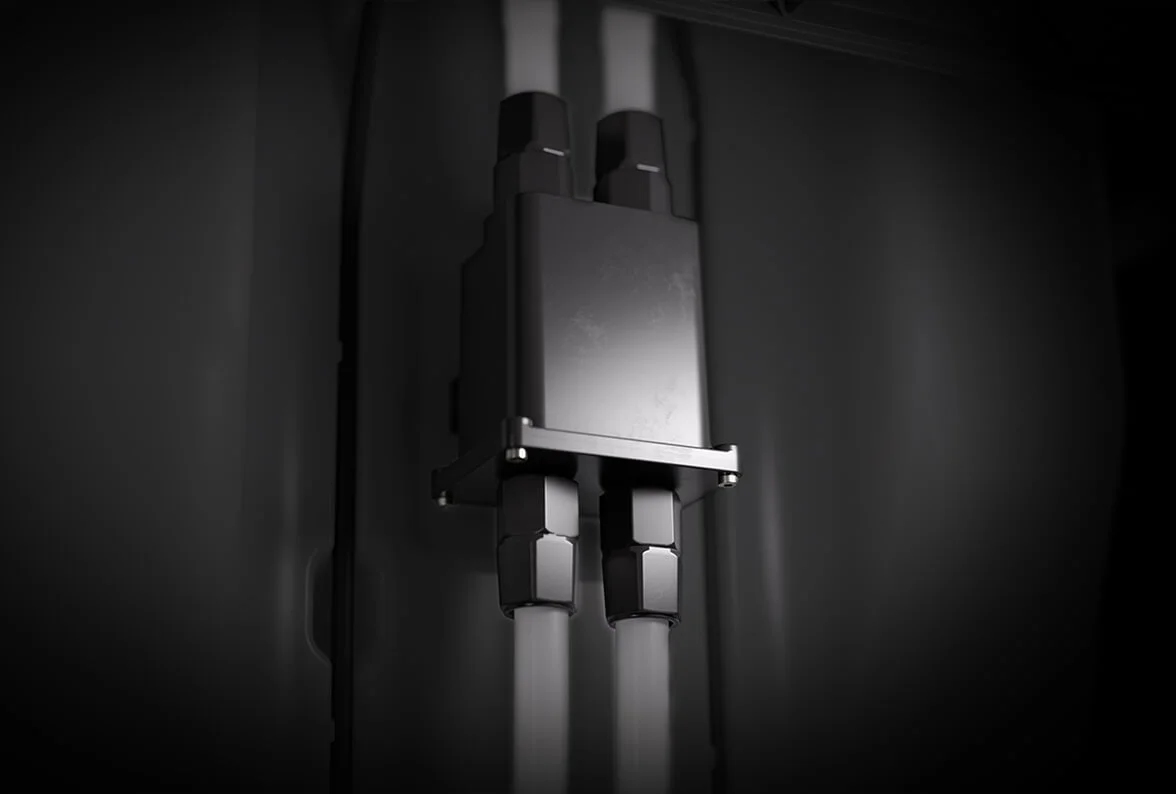

Real-time precise flow detection and dynamic control ensures high-precision operations. It avoids direct contact with the liquid, preventing corrosion and enhancing durability.

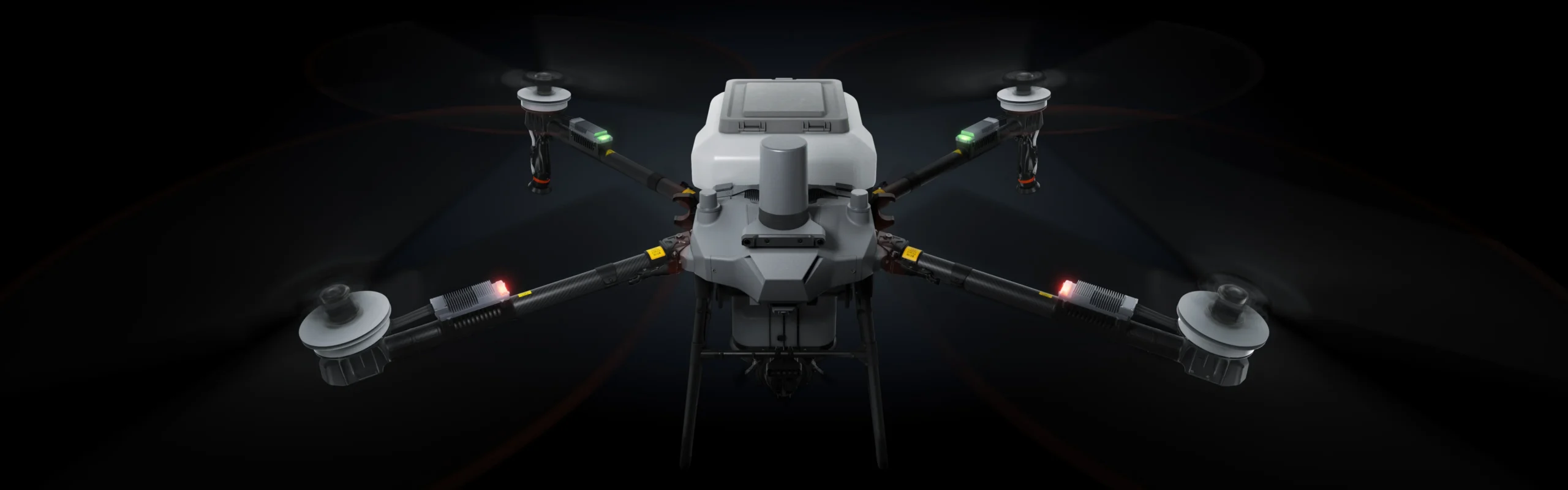

The DJI Agras T70P features a new spreading system with a larger payload and capacity, delivering a 270% increase in spreading flow rate for significantly improved efficiency. Equipped with a new screw feeder, it supports a wide range of granulars and excels in diverse scenarios, including fields, orchards, and aquaculture.
High Capacity Spreading Tank
High Flow Rate
Effective Spreading Width
Granule Size Range
Spreading accuracy doubled, flow rate increased by 270%, and granulars applicability further enhanced.

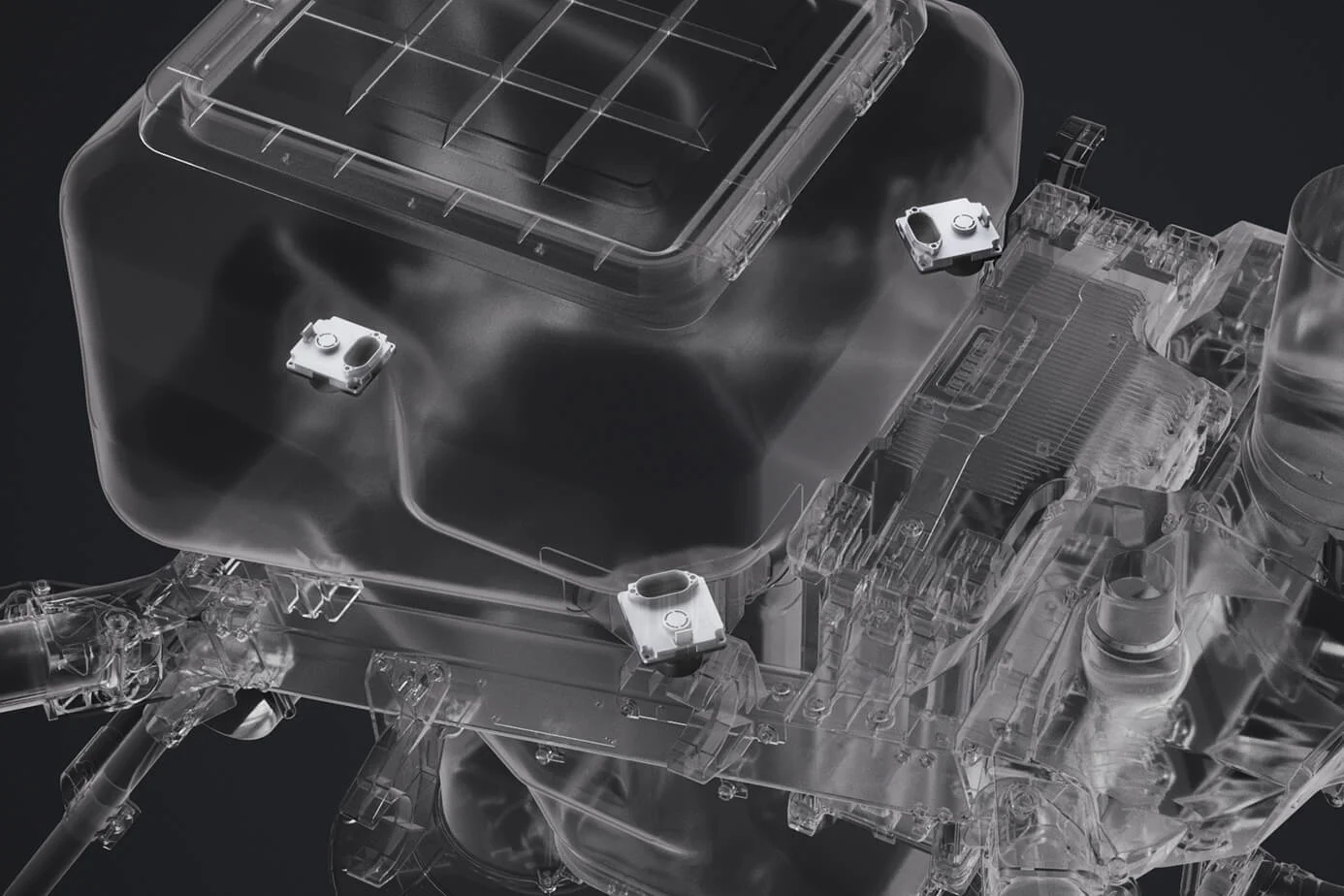

Provides real-time, accurate granulars quantity display for precise usage and refilling, effectively minimizing waste. It also supports automatic flow calibration and cloud-based storage of operation templates, ensuring precise and convenient spreading.

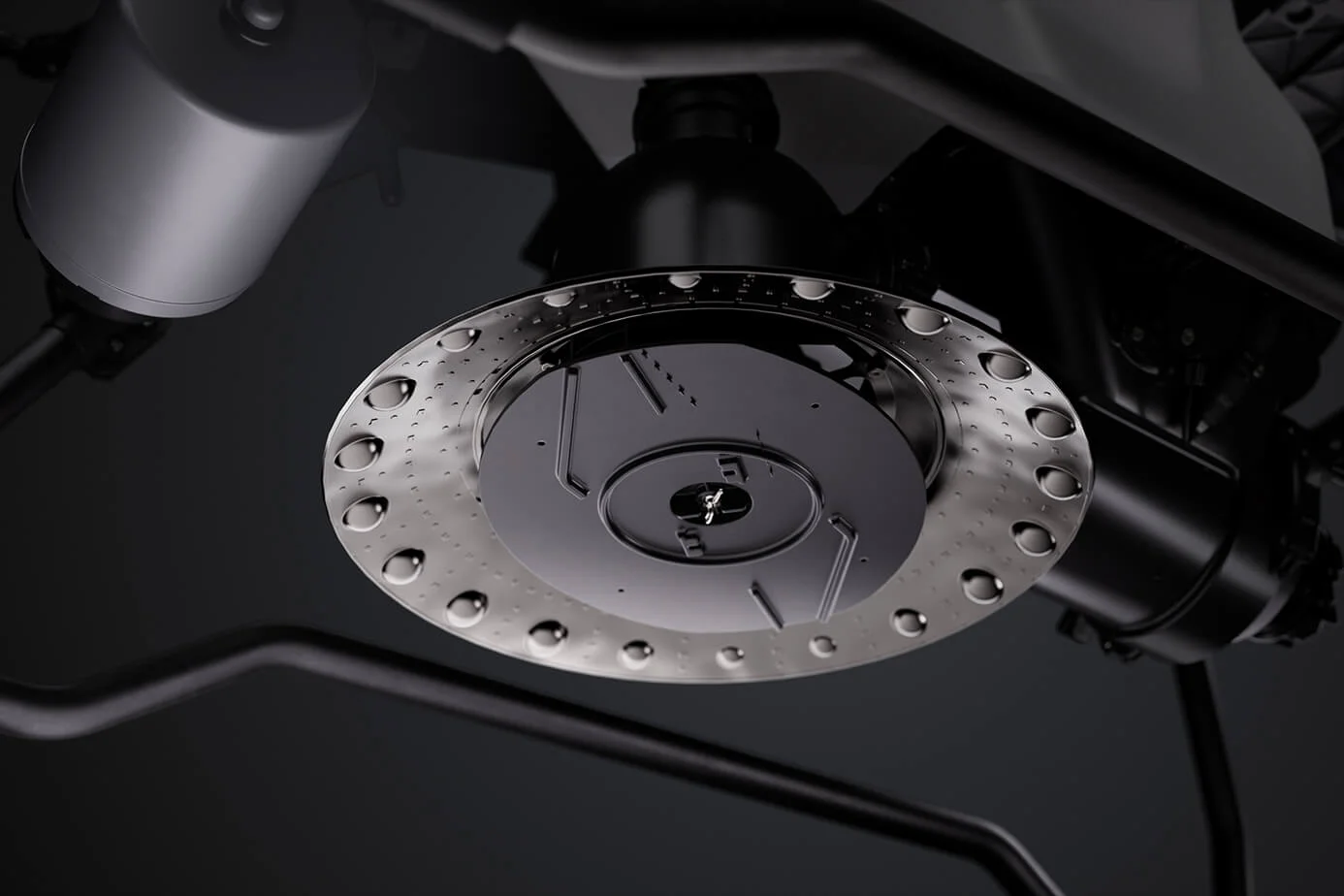

Ensures uniform spreading across the entire flow range with excellent results. Features a stainless steel construction for durability and strength.

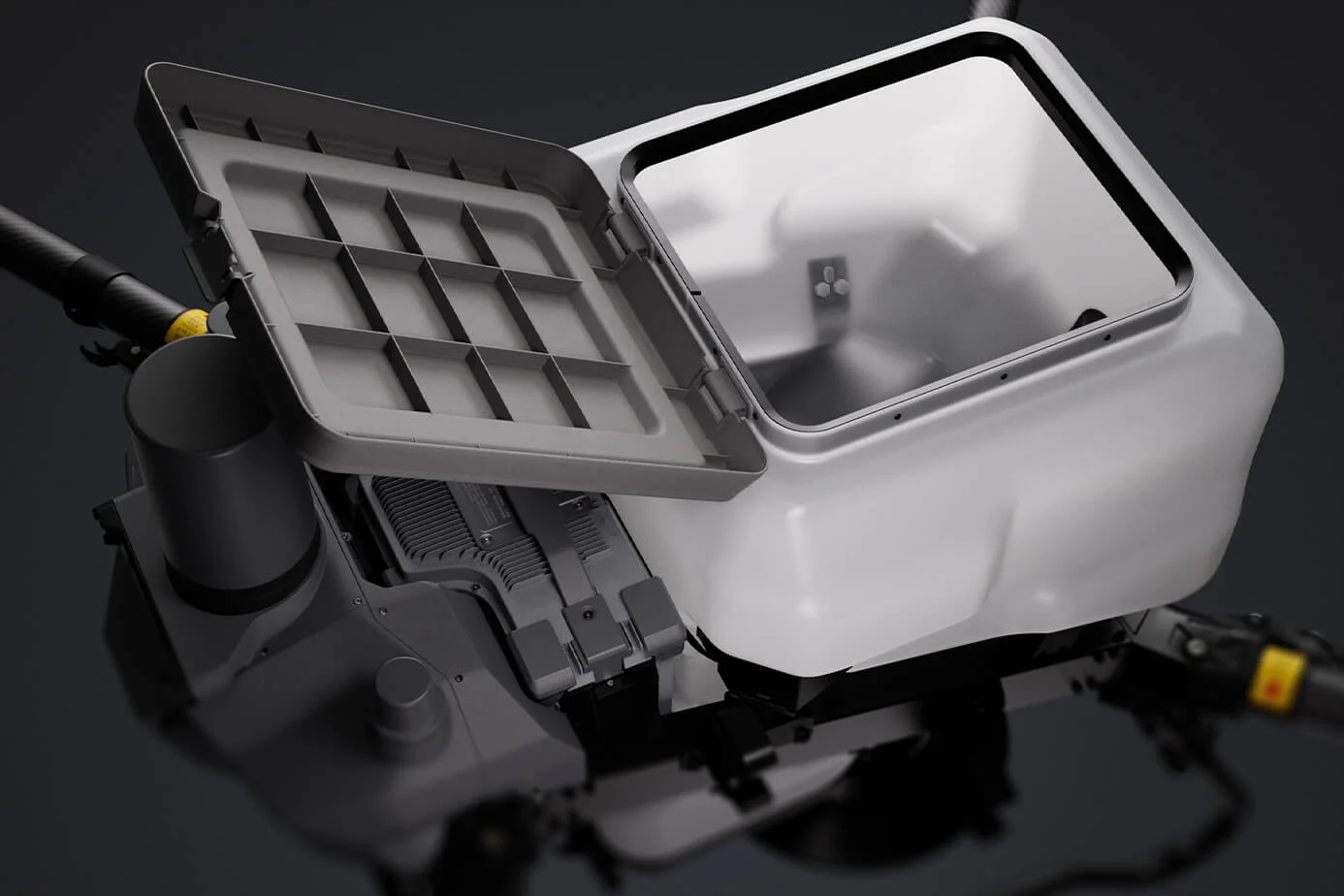

Makes bulk loading convenient and simple.

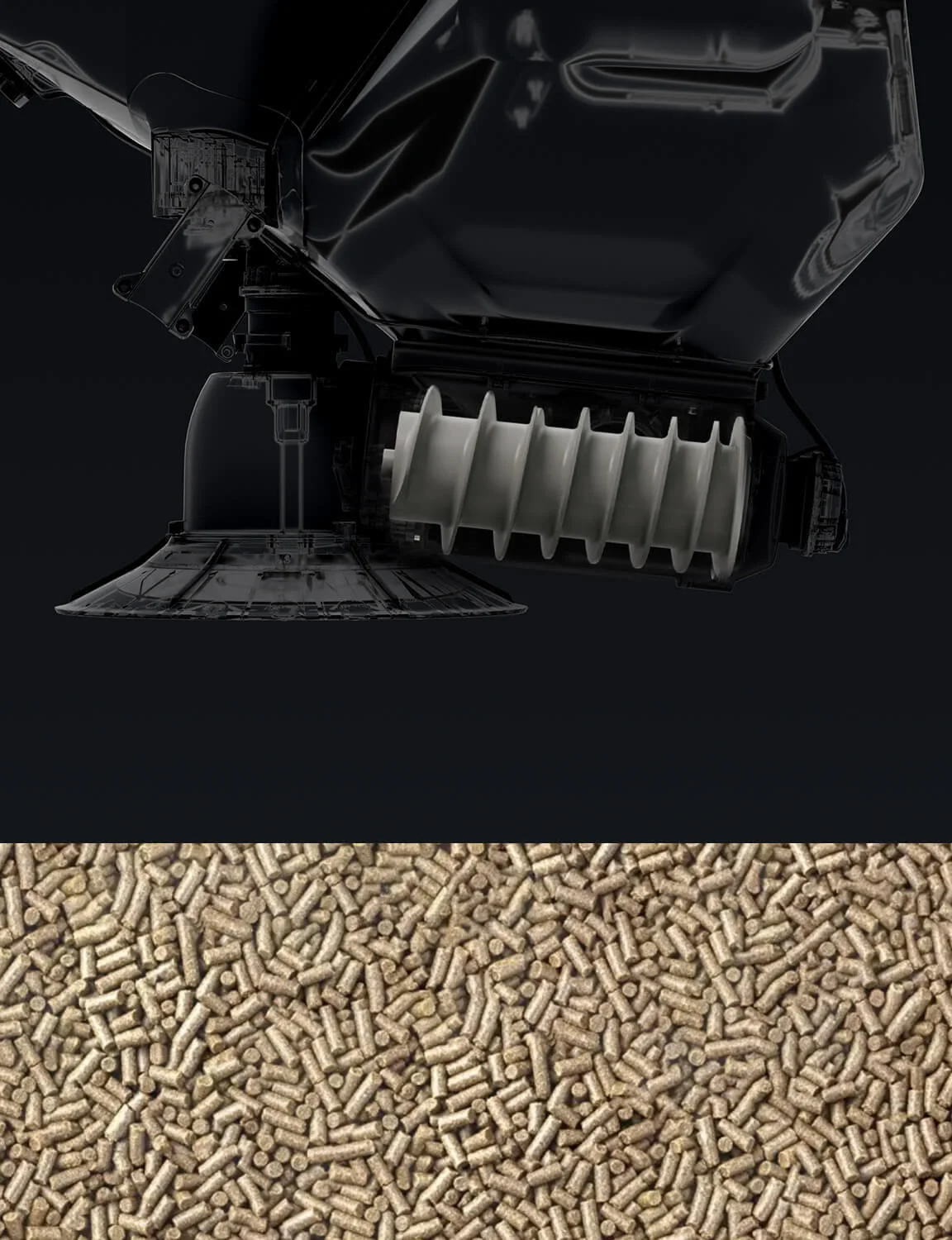

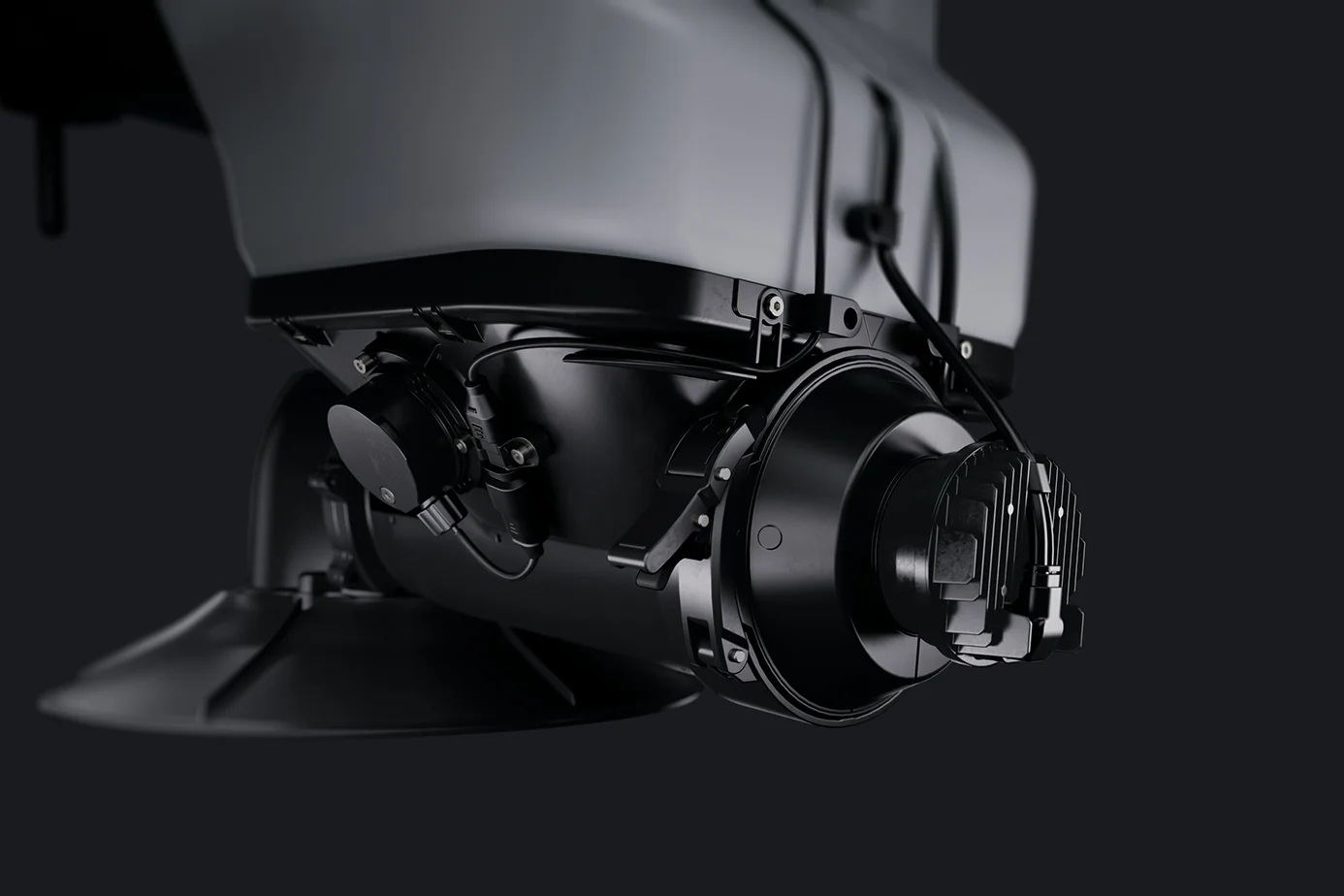

Supports five interchangeable feeder sizes for precise flow and greater adaptability across seeding, fertilizing, and feeding.
Suitable for granulars such as fertilizers, wheat seeds, granular fungicides, feed, etc.
Recommended application rate: 75-750 kg per hectare.
Recommended particle size: 0.5-10 mm
Suitable for granulars such as rice seeds, cover crop seeds, etc.
Recommended application rate: 75-270 kg per hectare.
Recommended particle size: 4-10 mm
Suitable for granulars such as rice seeds.
Recommended application rate: 22.5-120 kg per hectare.
Recommended particle size: 4-6 mm
Suitable for granulars such as aquatic feed and other high-volume, small-particle materials.
Recommended application rate: 22.5–120 kg per hectare.
Recommended particle size: 0.5-2 mm
Suitable for granulars such as rapeseed, granular herbicides, grass seeds, granular insecticides, etc.
Recommended application rate: 3-22.5 kg per hectare.
Recommended particle size: 0.5-4 mm
The T70P is equipped with intelligent obstacle avoidance and AR-enhanced display. With Safety System 3.0, its radar and vision systems work together with upgraded algorithms to deliver comprehensive obstacle awareness, enabling smooth navigation and effortless maneuvering through fields.

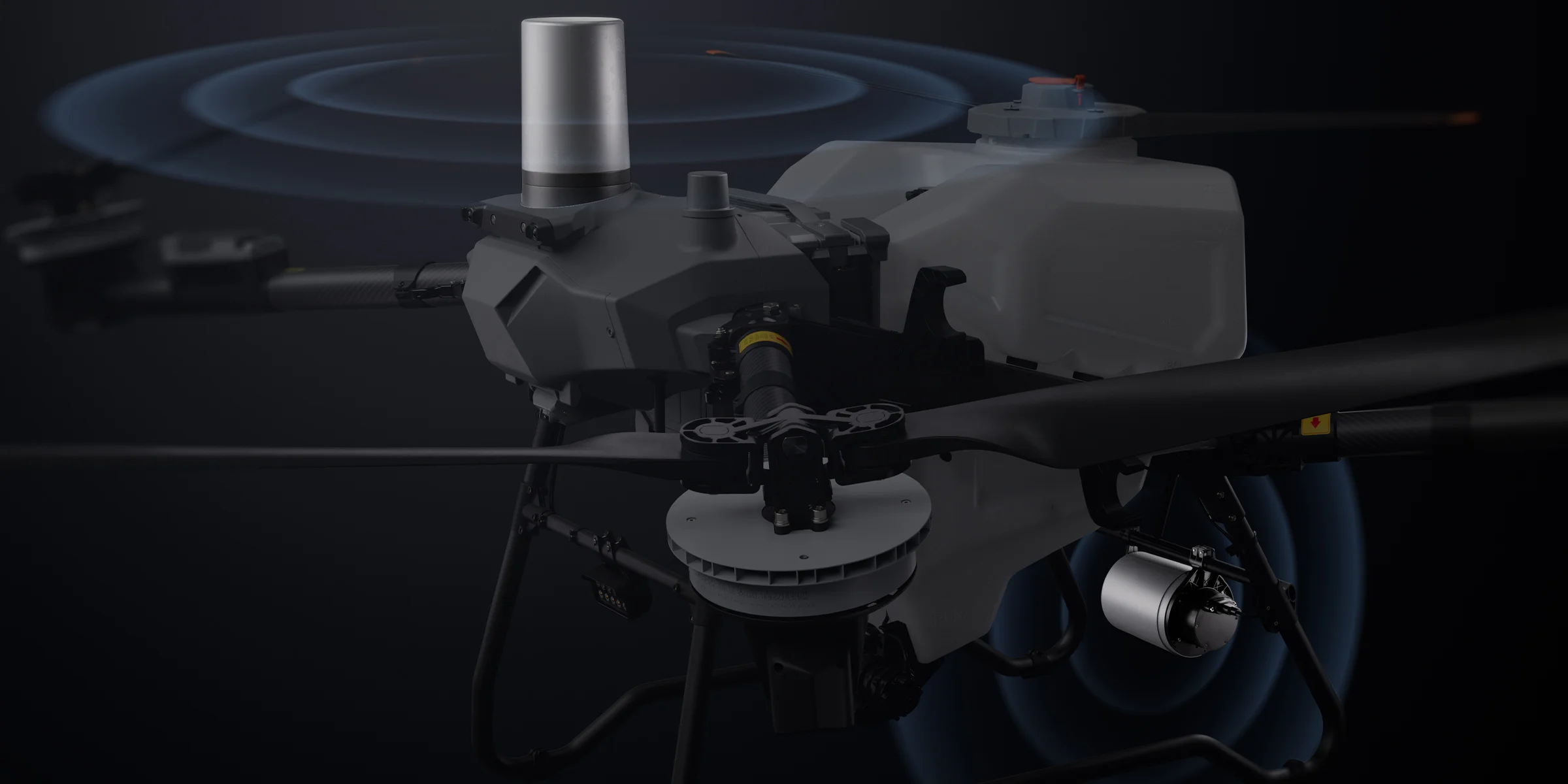

The front radar performs 5,000 vertical airspace scans per second combined with 360° horizontal mechanical rotation scanning, along with a rear radar, offering a more comprehensive detection range.

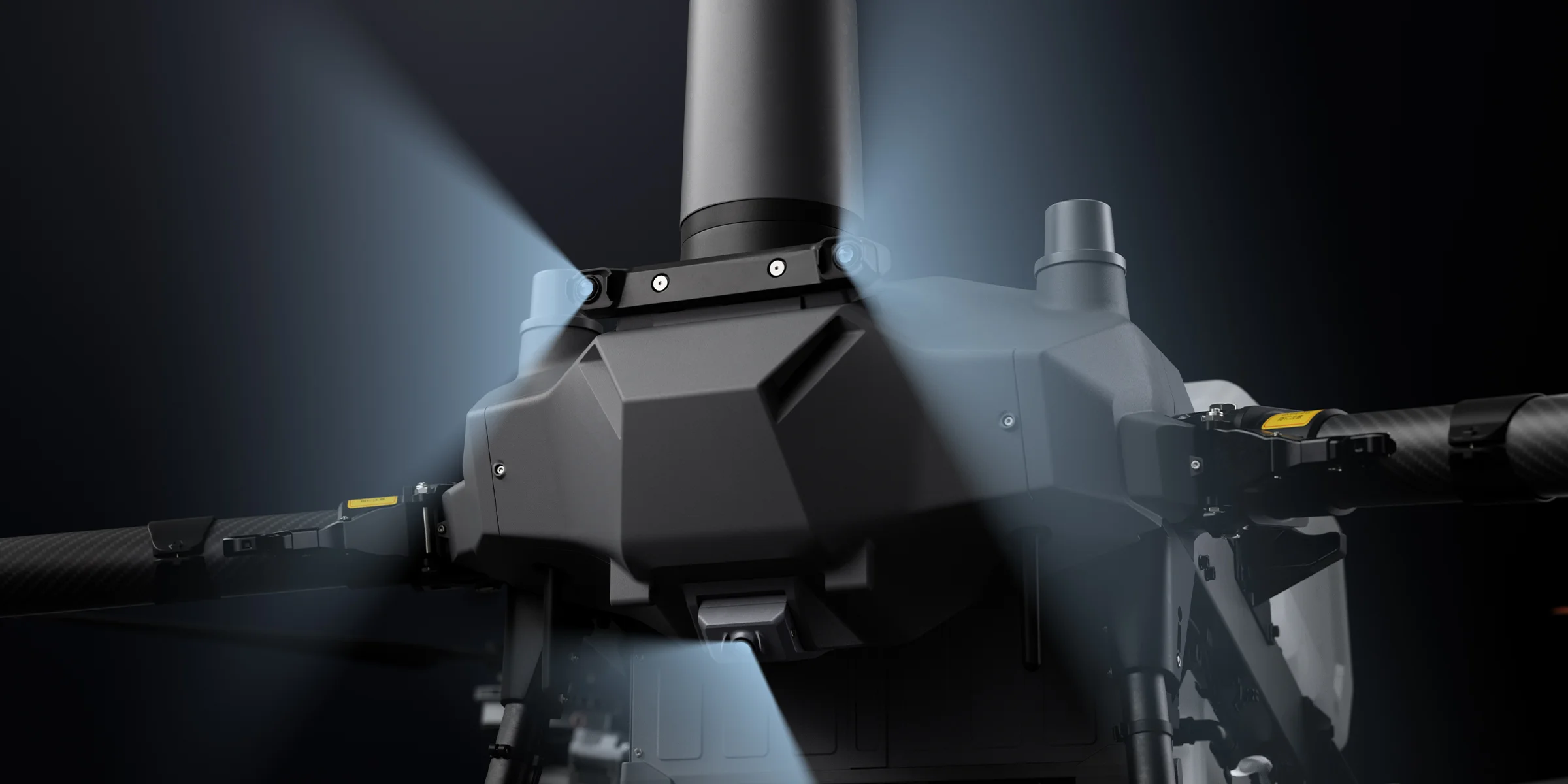

Two black-and-white fisheye cameras and an FPV camera work in tandem with radar through visual fusion algorithms to enhance Terrain Following and obstacle avoidance capabilities.

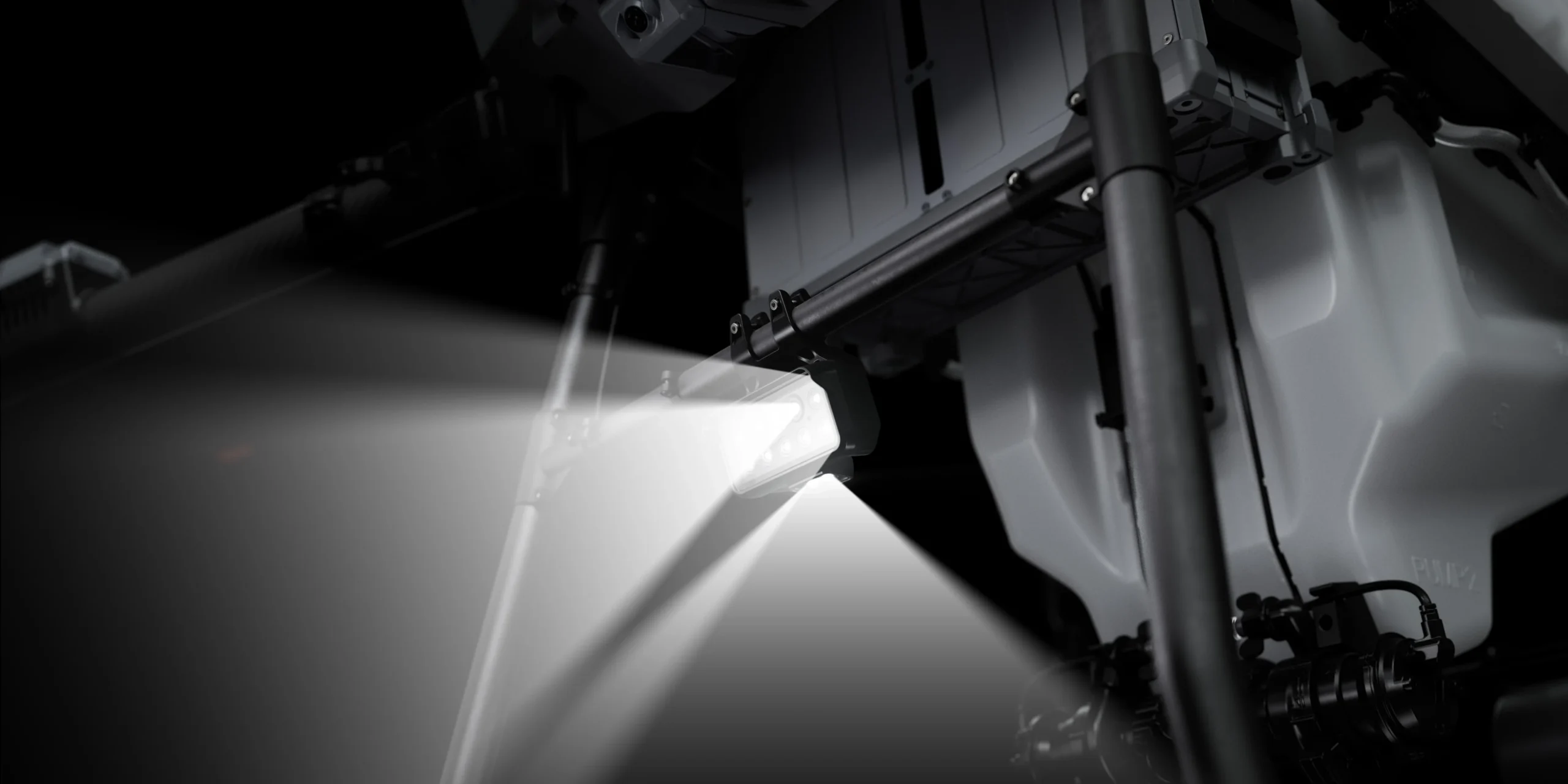

In addition to the existing low beam lights, new front-facing high beams and downward supplemental lighting have been added. The downward lighting automatically activates during landing, ensuring safer nighttime operations.

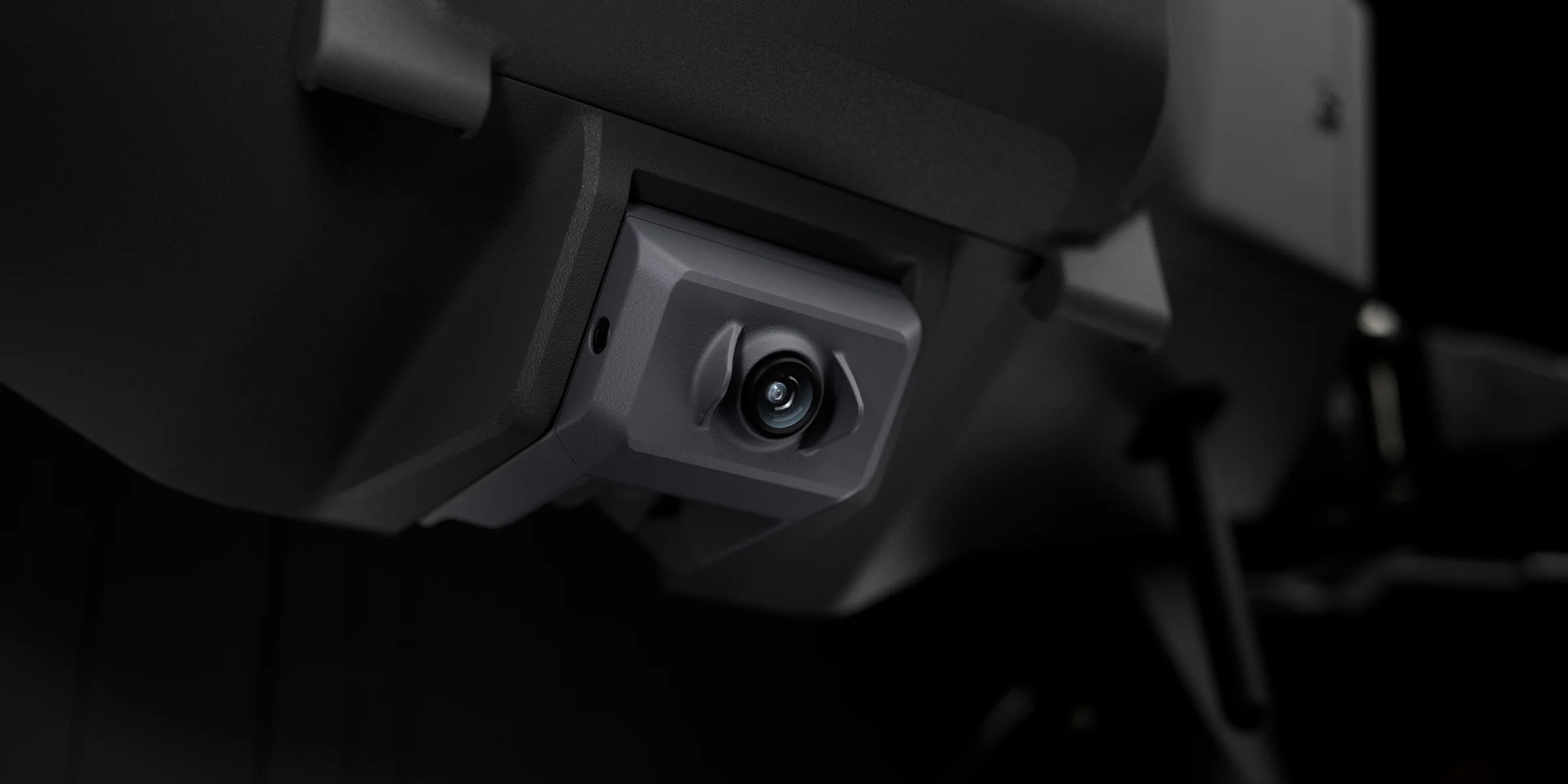

Utilizing virtual gimbal technology, the FPV camera’s pitch angle can be freely adjusted. It supports night vision mode, and when combined with night navigation lights, obstacles remain clearly visible even in the dark.

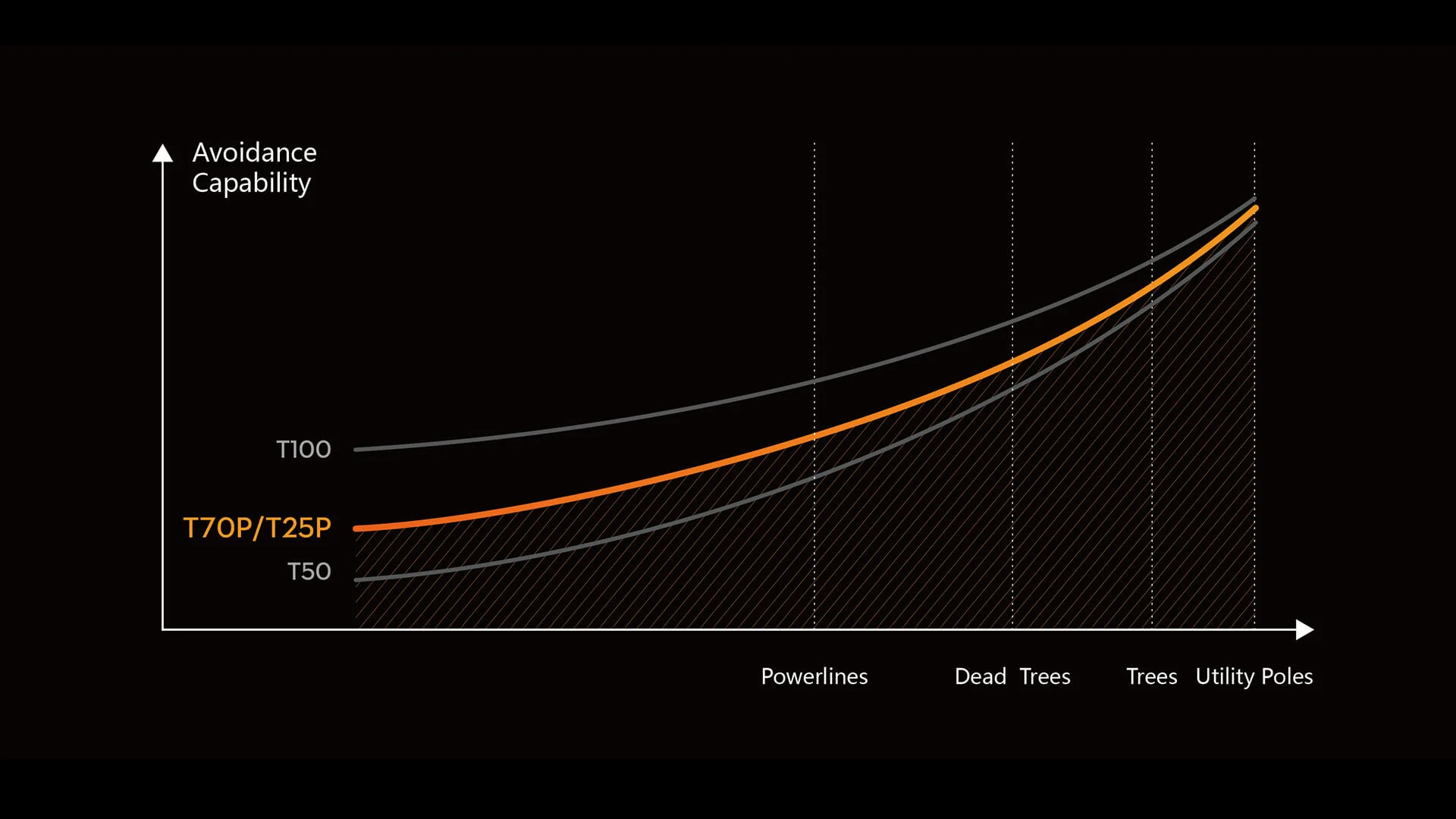

Supports 360° horizontal and upward obstacle avoidance, along with steep slope Terrain Following without aerial mapping. The detection rate for diagonal cables and power lines has been improved, ensuring all field obstacles are clearly detected.
The newly upgraded Safety System 3.0 incorporates intelligent detection algorithms, enabling obstacle detection and smarter route selection, significantly improving obstacle clearance rates. Additionally, it features an advanced terrain mapping algorithm that accurately extracts terrain features for high-precision Terrain Following operations in agricultural settings.
The DJI Agras T70P transforms into a transport solution with a lifting capacity of 65 kg; it carries more and travels further. Features like Auto Balance Control, weight detection, and automatic navigation to loading and unloading points make it adaptable to various agricultural transport scenarios.

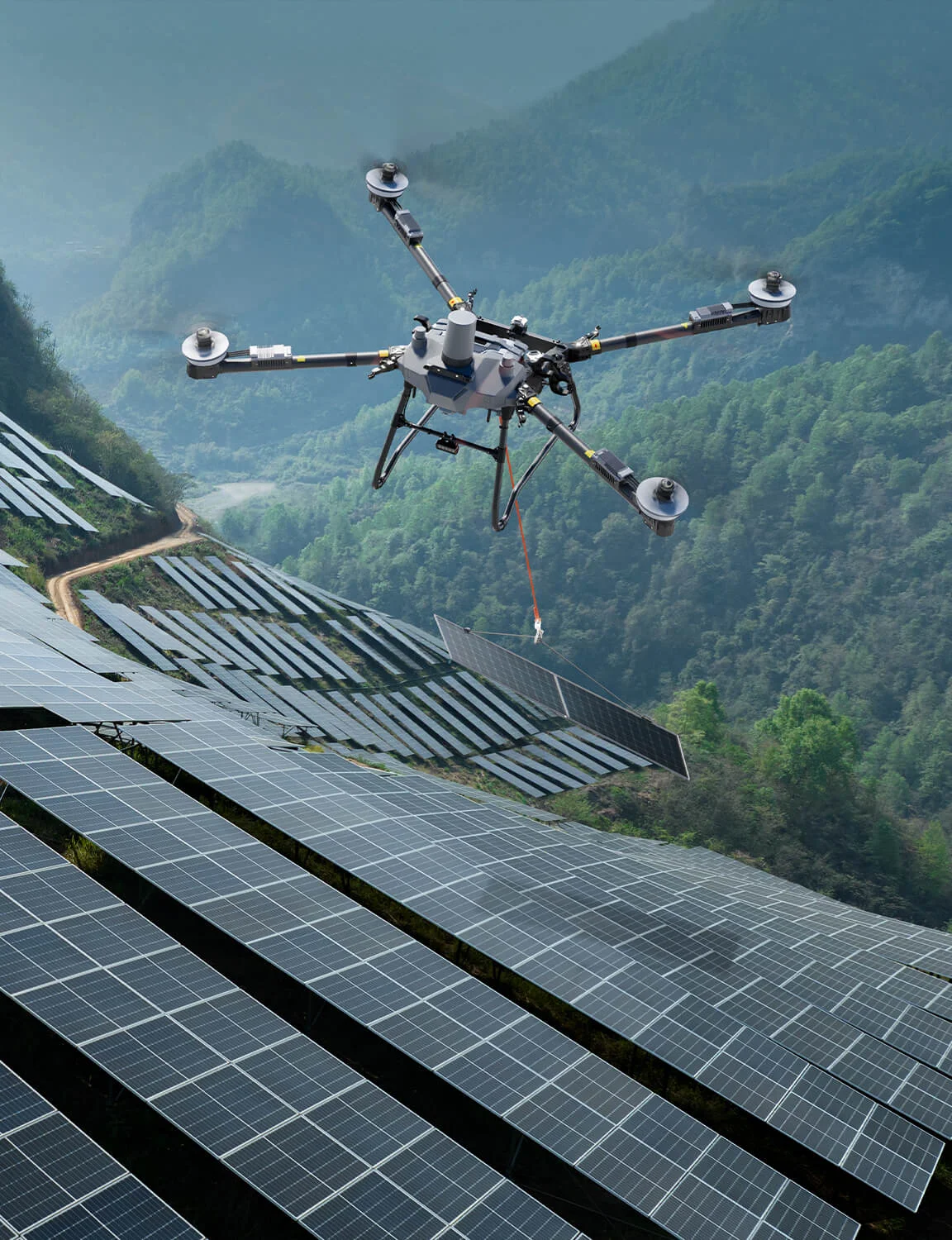

Solar Panels

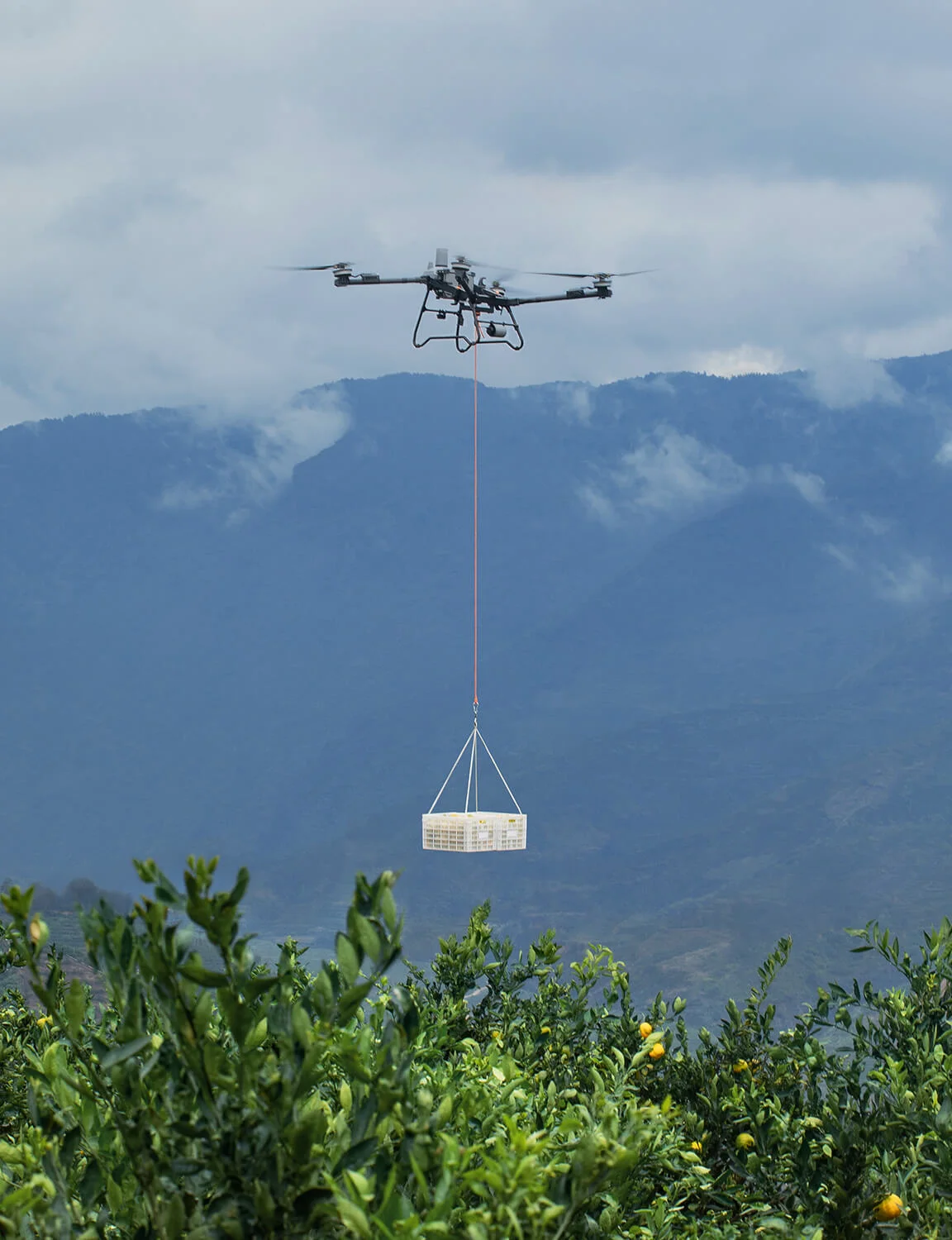

Fruit

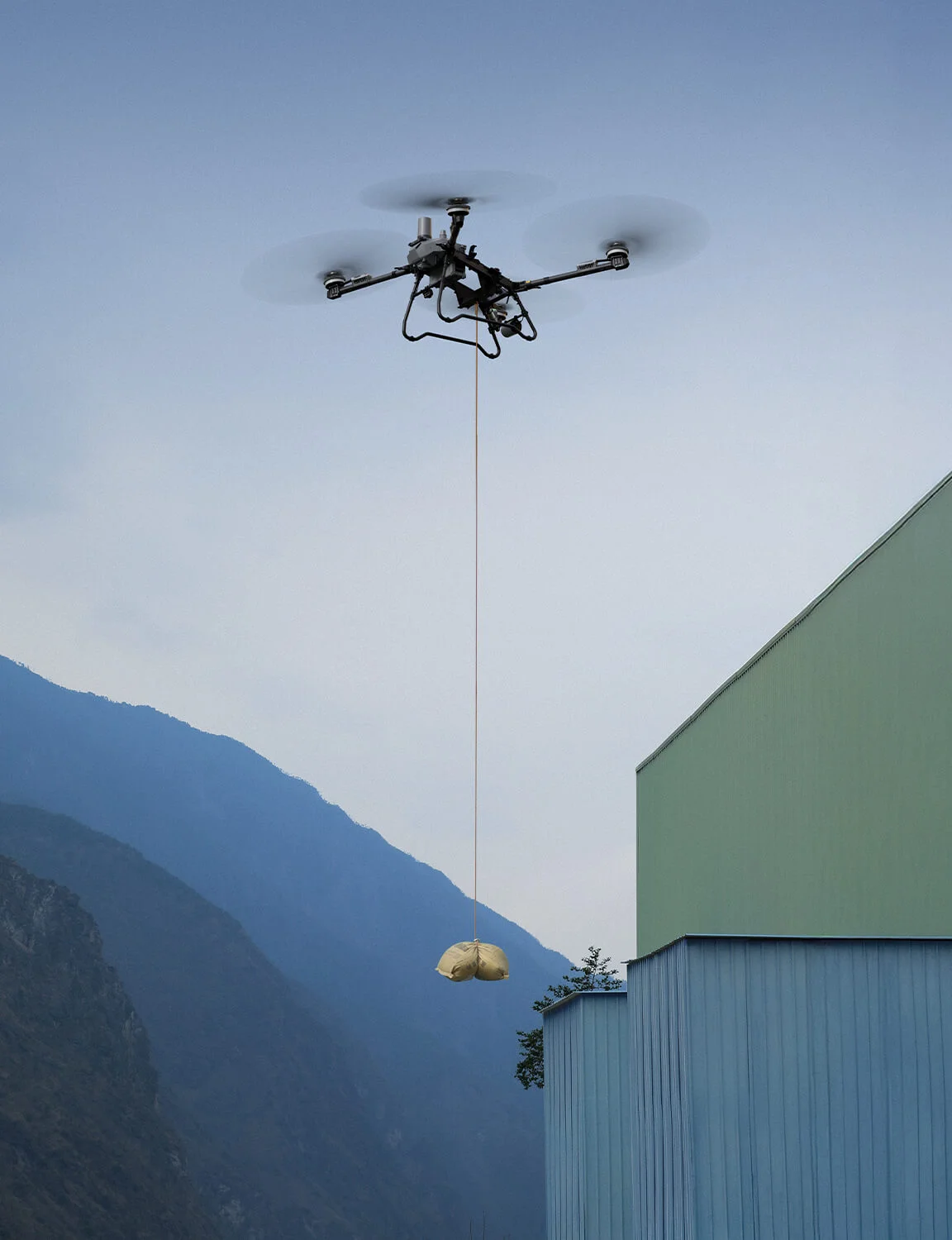

Building Materials

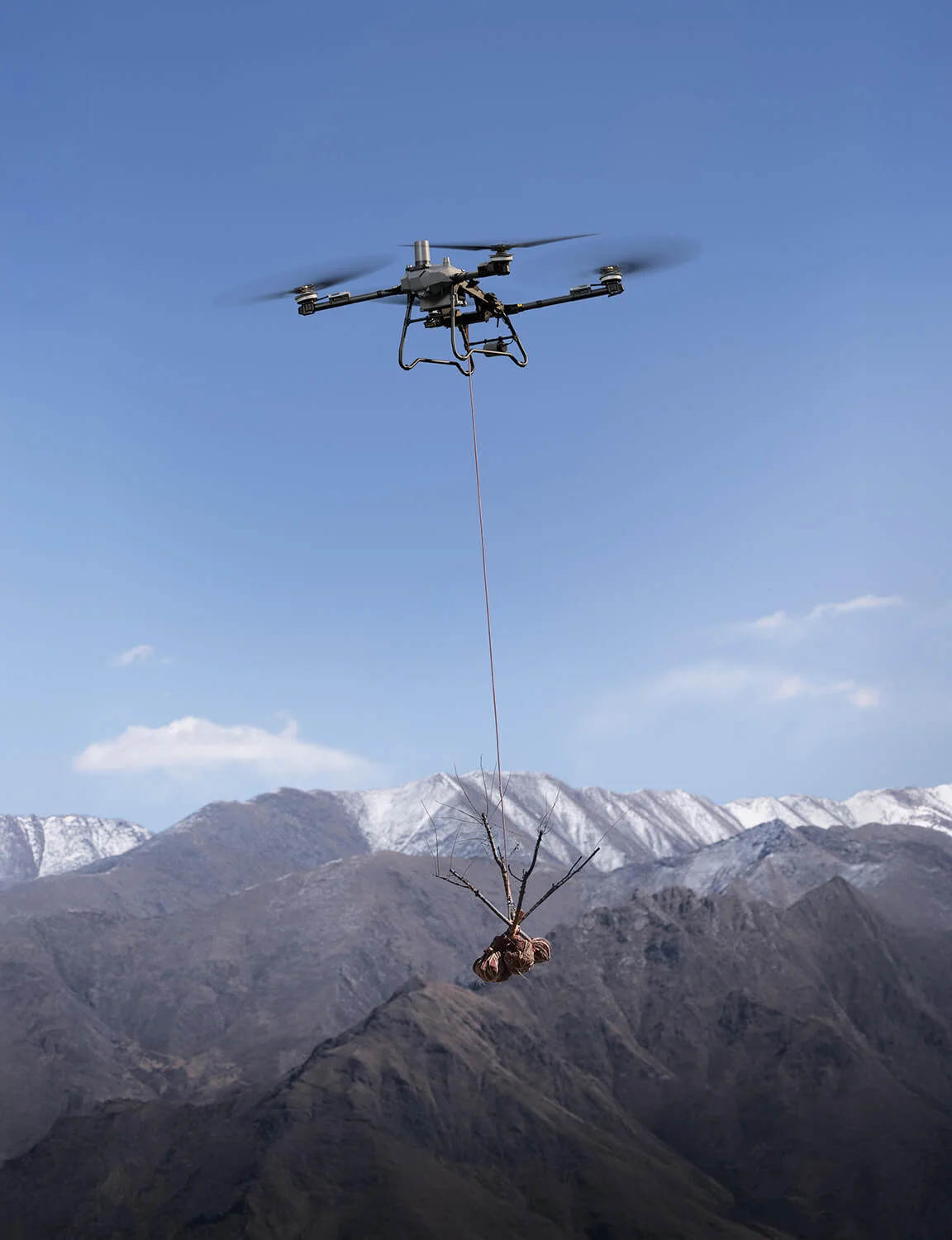

Saplings
Utilizing a triaxial force sensor, the drone can automatically adjust its posture during flight to eliminate swinging, ensuring safer operations.
A triaxial force sensor provides real-time weight monitoring to prevent overloading and ensure operational safety.
Operators can use their mobile phones, in conjunction with the RTK module, to add load and unload points, which are then synced to the remote controller. Pilots can quickly locate destinations using AR projection on the controller.
Freely select loading and unloading points and reach them with a single click

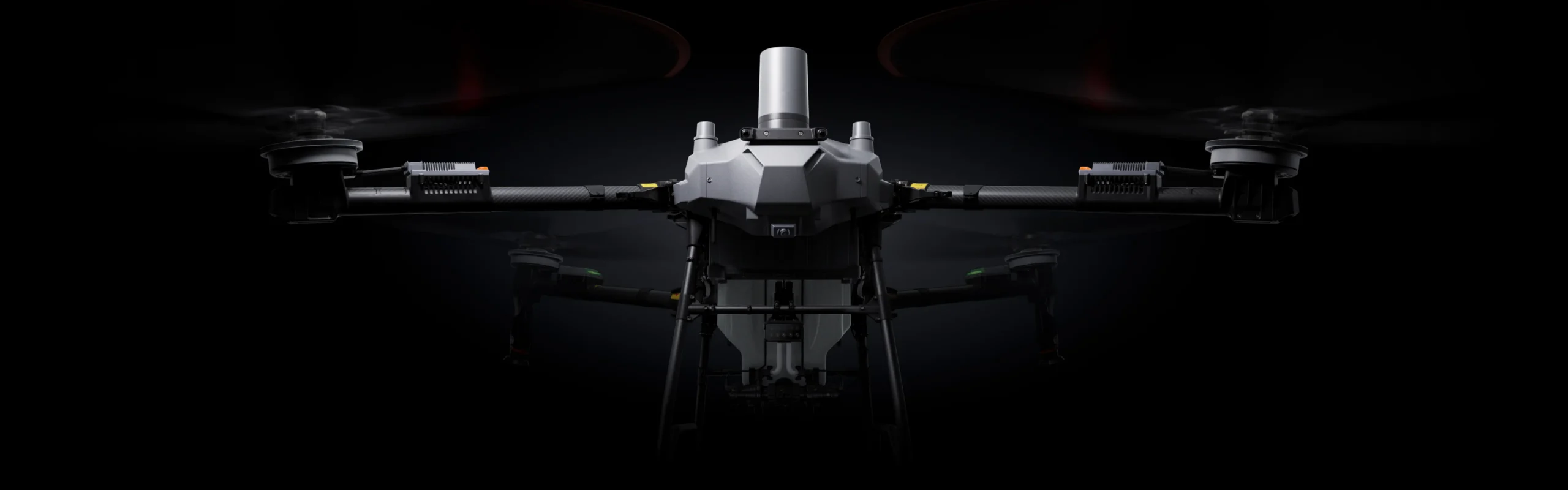

The T70P, through further optimization of the power system, effectively reduces energy consumption while maintaining the same operational area and effectiveness.
Enhanced Efficiency
Max Speed
Lower Power, Higher Load

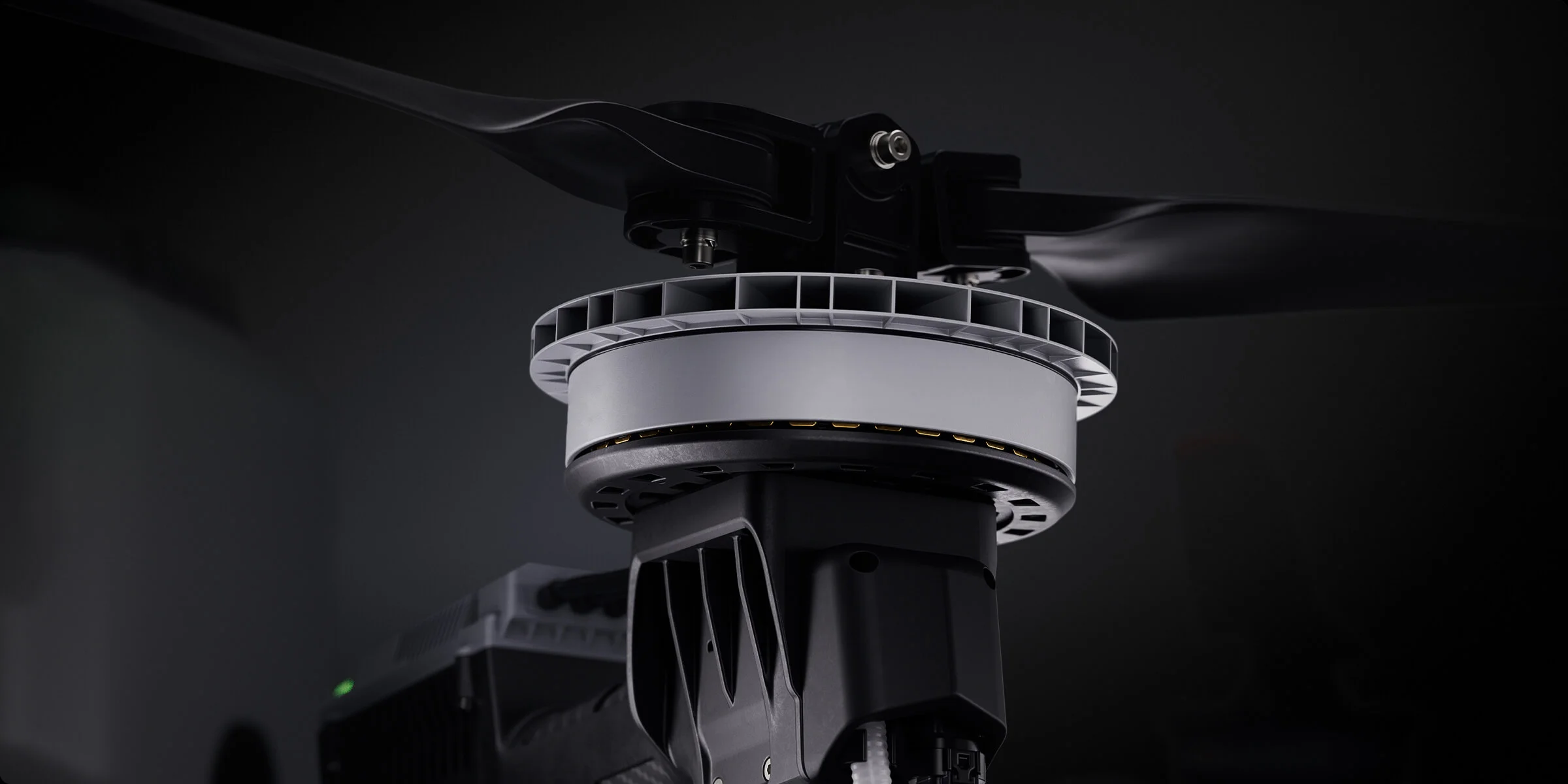

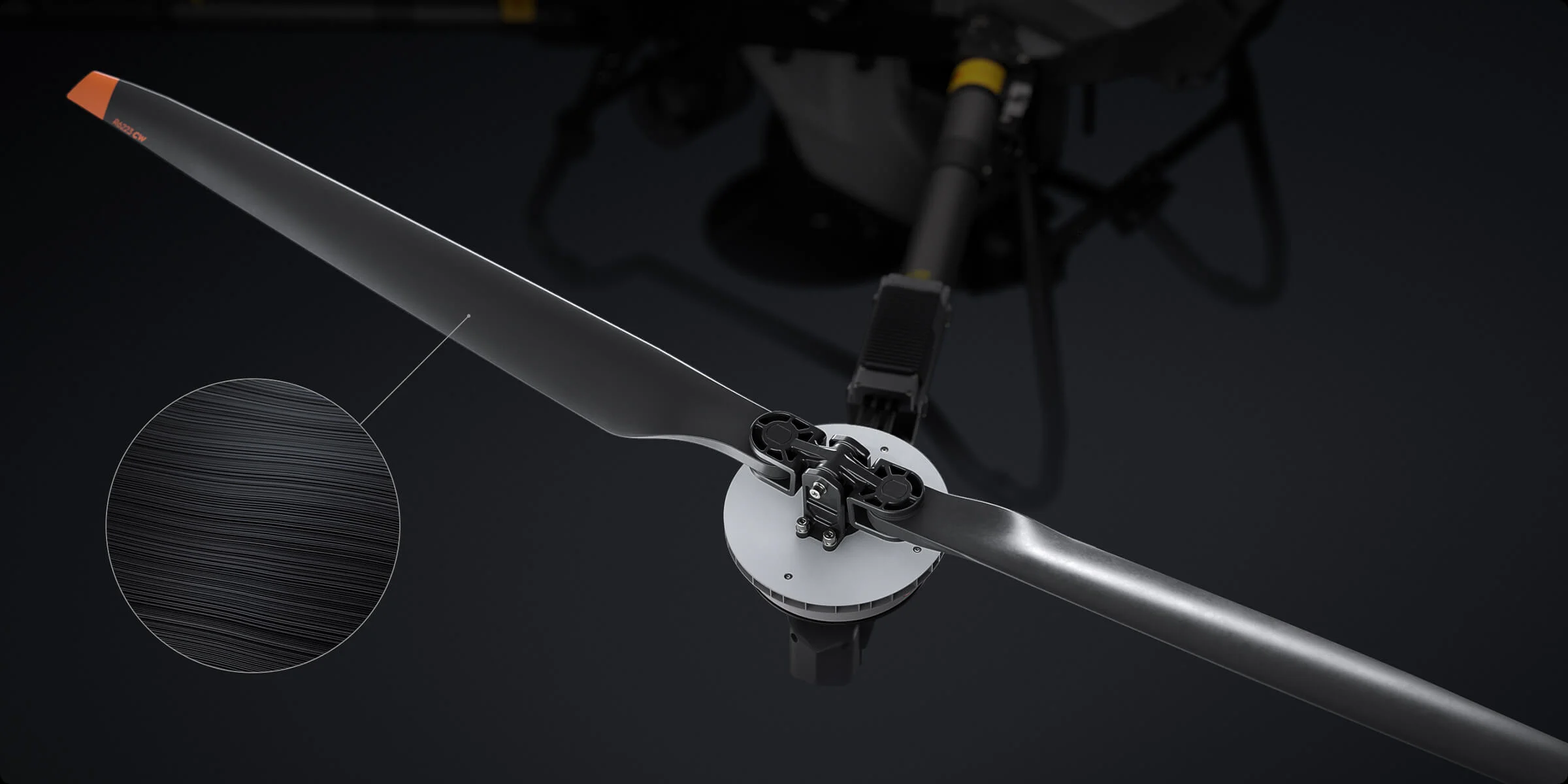

Carbon fiber propellers offer greater rigidity and lighter weight, resisting deformation even at high temperatures. With optimized airfoil and increased diameter, efficiency is improved by 15%.
With enhancements in motor electromagnetics and craftsmanship, efficiency is improved by 3%.

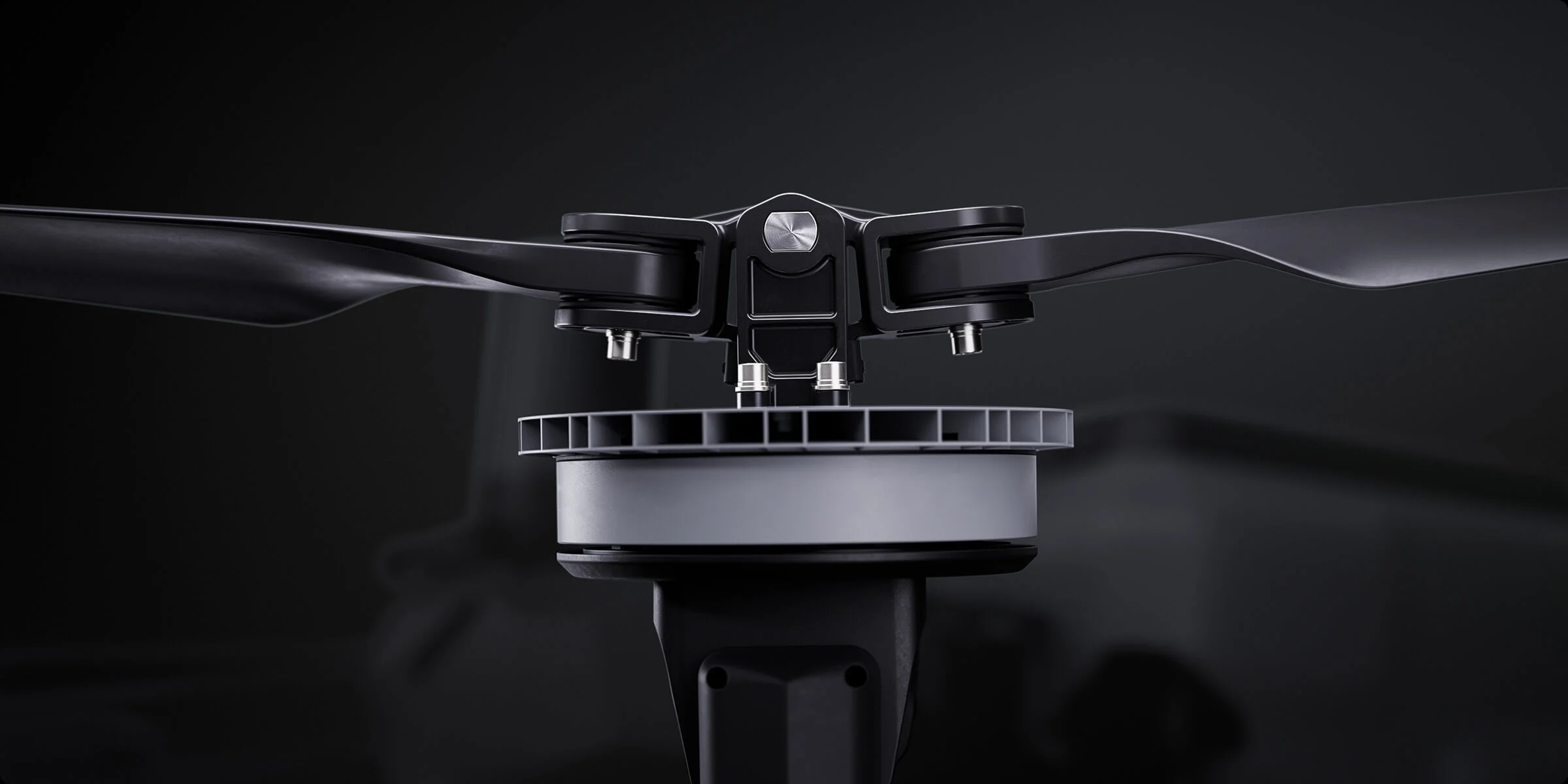

Reduces body vibration by 40%, resulting in more stable flight and lower power consumption.
